Avid NEXIS Enterprise (E) class storage platform was designed for small to mid-sized post-production, broadcast, audio and media education environments.

This team-level storage engine offers high redundancy and greater scalability, performance, and collaboration through optional dual-redundant controller cards, media pack mirroring and larger-capacity media packs.

As standard, these platforms support 40 editing clients and a maximum of 4 media packs. To increase the number of supported editing clients and media packs, an external System Director Appliance (SDA) is required.

NOTE: The E Series was superseded by the F Series at the end of 2022. E Series chassis are no longer available.

Avid NEXIS E2

The E2 platform is almost indistinguishable from the NEXIS Pro when viewed from the front. However, internally these are noticeably different in its capacity (RAW TB,) resilience (dual controllers) and media protection using media pack mirroring.

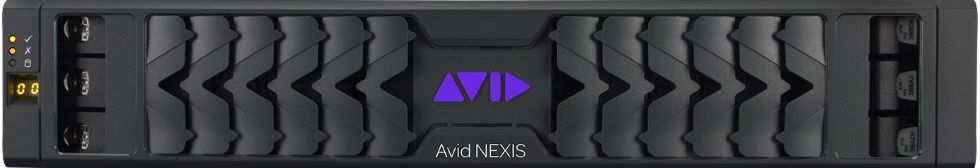

Avid NEXIS E2 - 2RU deep

Avid NEXIS E4

The E4 is 4U deep and its 2 media packs (20 Media drives) can be controlled through a single controller card, but it offers the option for a failover controller too. It also has the advantage of being able to hold 2 active spare drives within the chassis. These chassis can also be half populated, although this is rarely found deployed in this manner.

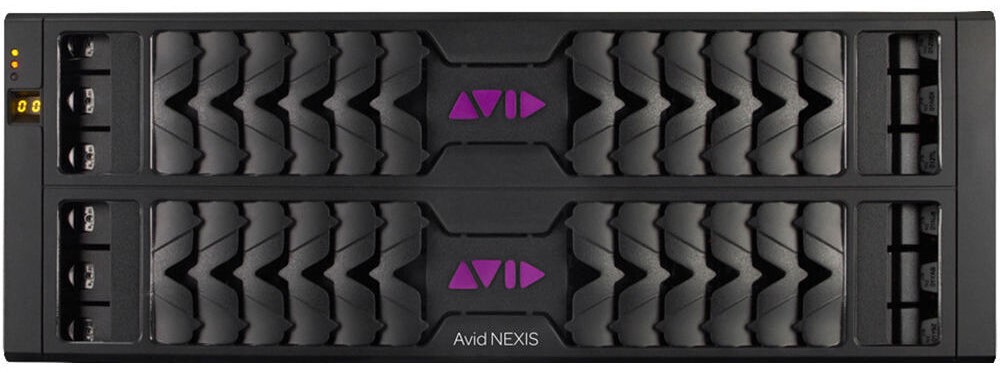

Avid NEXIS E4 Chassis - 4RU deep holding 2 MediaPacks

TECHNICAL SPECIFICATIONS

Avid NEXIS E2

• 20–140 TB of storage capacity with a single Media Pack per engine (60 TB, 100 TB, or 140 TB HDDs, offering up to 400MB/s scale out and 600 MB/s high-performance storage group.)
• Scalable by combining other E-series engines into a single system with up to 64 Media Packs total (SDA required.)
• Two hot-swappable SSDs for system configuration and metadata management.
• 10 Gigabit Ethernet (SFP28)
• Dual PSU and cooling modules.
• 2RU rack-mountable chassis.
• Supports redundant controllers.

Avid NEXIS E4

• 20–280 TB of storage capacity with a single Media Pack per engine (60 TB, 100 TB, or 140 TB HDDs, offering up to 400MB/s scale out and 600 MB/s high-performance storage group.)
• Scalable by combining other E-series engines into a single system with up to 64 Media Packs total (SDA required.)
• Can house two spare media drives.
• Two hot-swappable SSDs for system configuration and metadata management.
• 10 Gigabit Ethernet (SFP28)
• Quad PSU and cooling modules.
• 4RU rack-mountable chassis.
• Supports redundant controllers.
